BTHFC and BTFC

  • Brand:
    		•
  • BT TROWEL NV
  • Origin:
    		•
  • Belgium
    		•
  • Model No:
    		•
  • BTHFC and BTFC
    		•
  • Catalogue:
    		•
    		•
  • Description:
    		•

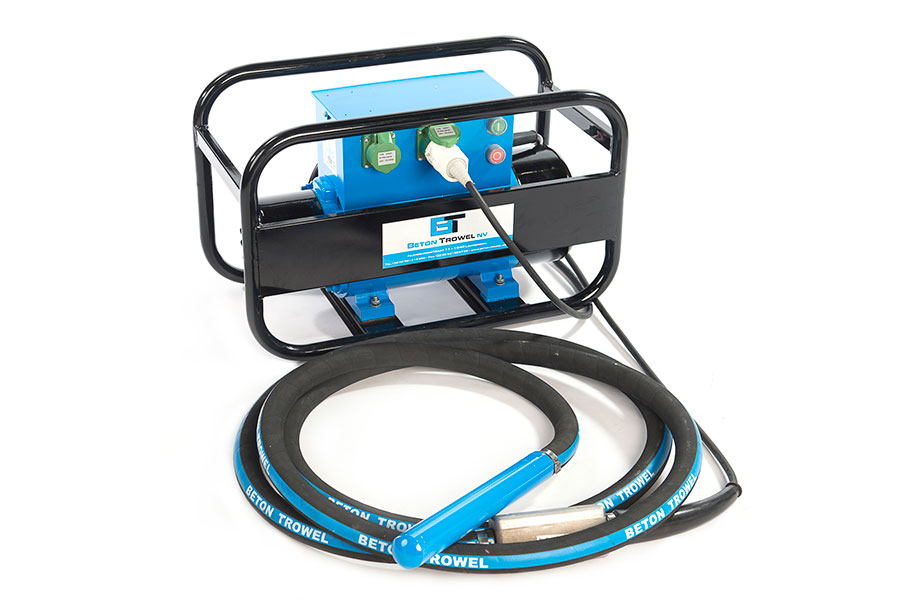

  • Beton Trowel High Frequency Vibrator Convertors

  • Catalogue:
    		•
    • beton trowel convertor
Specification Data:
Model Diameter Frequency Amplitude Hose Cable Power Amps kN
BTHFC35/5 35mm 12000 1.8 5m 10m 42V/3-200hZ 8 1
BTHFC35/12 35mm 12000 1.8 12m 10m 42V/3-200hZ 8 1
BTHFC45/5 45mm  12000 2 5m 10m 42V/3-200hZ 11 2.6
BTHFC45/12 45mm 12000 2 12m 10m 42V/3-200hZ 11 2.6
BTHFC60/5 60mm 12000 2.2 5m 10m 42V/3-200hZ 16 2.2
BTHFC60/12 60mm 12000 2.2 12m 10m 42V/3-200hZ 16 2.2
Model Capacity Input(PH/HZ/V/A) Output Weight Qty Vibs Per Unit
BTFC200/18/2 1.8KVA 3/50/380/2.8 3/200/48/22 37Kg 2
BTFC200/45/2  4.5KVA  3/50/380/8.3  3/200/48/54  78Kg  4
BTFC200/11/1-D  1.1KVA  1/50/220/2.8 3/200/48/11  27Kg  1
BTFC200/25/2-D 2.5KVA  1/50/220/2.8  3/200/48/25  37Kg  2
